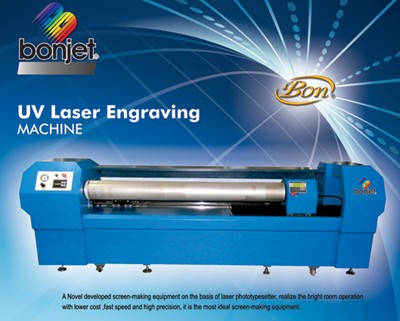

Uv Laser Engraving Machine:

A novel developed screen-making euipment on the basis of laser phototypesetter, realize the bright room operation with lower cost, fast speed and high precision, it is the most ideal screen-making equipment.

The characteristics:

1) Adopts the traditional UV photosensitive plastic, there is no need to change the production process,low cost

2.Using the American improt 405nm semiconductor lasers, optical fiber's transmission efficiency is high and power is strong,laser system auto zoom, light intensity dynamic adjustment,good consistency.

Technical parameters

Model                                SD2200                                         SD3500

Screen Breadth                2200mm                                           3500mm

Screen repeat                  640mm(standard)                      819mm/914mm/1080mm

Resolution                        508dpi/1080dpi                         360dpi/720dpi(special resolution can be customized)

Registration Accuracy          (+-)0.02mm

Imaging light source            405mm laser diode

Engraving speed:              6-8min/m(repeat 640mm)

Acceptable File Format:         TIFF/BMP/JPG/JAR/JC/GIF

Interface:                          USB

Environment:                       Temperature 5-40centigrade

                                          Humidity30-80 persent(non-condensing)

                                          Lighting Yellow Light

Power                                2KW/220V,50HZ

Overall size:                         3400mm*700mm*1300mm(SD2200)                             4800mm*700mm*1300mm(SD3500)

Net Weight:                        1000kg(SD2200)                                     1500KG(SD3500)
